MIDITrail Ver.1.5.0 for Windows User Manual

Copyright (c) 2010-2026, WADA Masashi All rights reserved.
Web: https://www.yknk.org/miditrail/
Mail:

Contents

1. Introduction
2. System requirement
3. How to get started
4. Operation Panel
5. Opening MIDI files
6. Playback MIDI files
7. View Mode
8. Moving the viewpoint
9. MIDI IN monitor
10. Setting
11. Keyboard operations
12. Restriction
13. FAQ
14. How to customize
15. Appendix
16. Copyright and license
17. Acknowledgements
18. History

1. Introduction

"MIDITrail" is a MIDI player which provides 3D visualization of MIDI datasets.
You can enjoy not only listening but also viewing.
MIDITrail supports SMF format 0/1, and multiple MIDI ports.
MIDITrail is available for Windows, macOS and iOS.

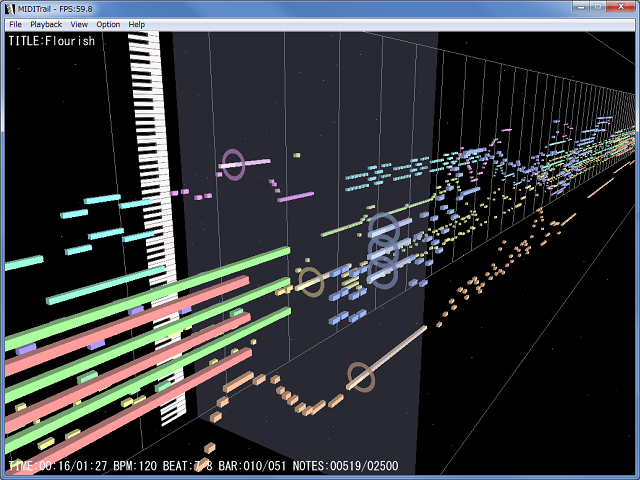

Screenshot: PianoRoll3D

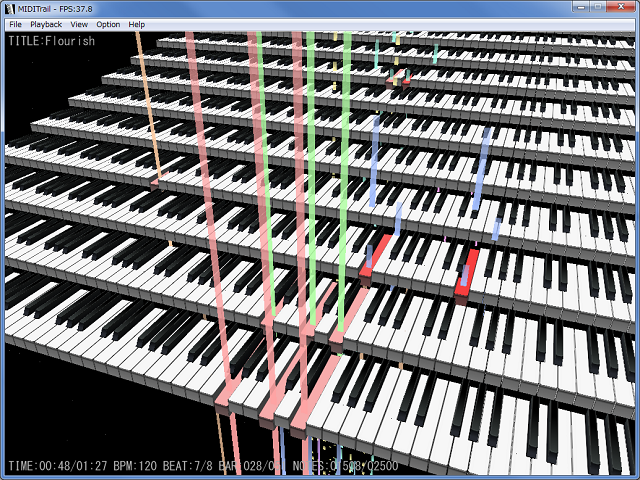

Screenshot: PianoRollRain

2. System requirement

OS: Windows 7 / 8 / 10 / 11
VIDEO: Support for DirectX 9.0c graphics

It is recommended that your PC has high performance graphics for smooth animation.
If the MIDI datasets contains a lot of notes, the software needs more performance graphics.
As long as the performance of your PC allows, please enjoy MIDITrail with large window.

MIDITrail Ver.1.2.5 or later does not support Windows 2000 / XP / Vista.
Please use MIDITrail Ver.1.2.4 on Windows 2000 / XP / Vista.

3. How to get started

(1) How to install

Extract ZIP file, and open "MIDITrail.exe".

ZIP file name
MIDITrail-Ver.X.X.X-Windows.zip -- MIDITrail 32bit version
MIDITrail-Ver.X.X.X-Windows64.zip -- MIDITrail 64bit version

(2) MIDI OUT port settings

Click "MIDI OUT..." in the "Option" menu to display the MIDI OUT settings dialog.
You must configure the output destination for Port A.

(3) Playback midi files

Drag and drop a MIDI file (*.mid) into the MIDITrail window to open it.
Click the button on the operation panel to start playback.

(4) How to open Recomposer data files

Recomposer is an old popular MIDI sequence software in Japan.
MIDITrail can open Recomposer data files (*.rcp *.r36 *.g36) using RCPCV.DLL (Recomposer File Converter) which Mr. Fummy releases. If you want to open Recomposer data files, please download RCPCV.DLL and copy it to the folder "MIDITrail.exe" exists.
Incidentally, MIDITrail(32bit) can load RCPCV.DLL, but MIDITrail(64bit) can not load RCPCV.DLL.
RCPCV.DLL http://www.vector.co.jp/soft/win95/art/se114143.html

4. Operation Panel

(1) Operation Panel

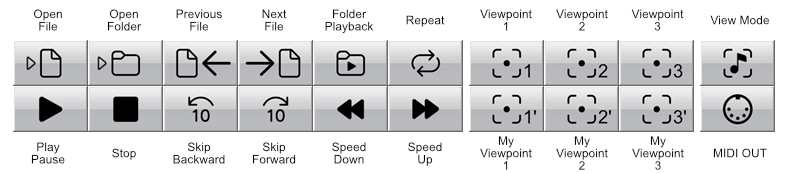

You can use the operation panel to control functions such as selecting and playing MIDI files and changing the viewpoint.

You can toggle the display of the operation panel by selecting "Operation Panel" from the "Window" menu.
Some MIDITrail functions cannot be accessed via the operation panel; please use the menu instead.
(e.g., MIDI IN monitor, saving viewpoints, various settings, viewing the manual)

5. Opening MIDI files

(1) Opening MIDI files

Clicking the "Open File" button on the operation panel will displays the file selection dialog, where you can select a standard MIDI file (*.mid).
You can also open a file by dragging and dropping a standard MIDI file (*.mid) into the MIDITrail window.
You can also open a MIDI file upon launching MIDITrail by dropping the file onto the shortcut of MIDITrail.

(2) Opening folder

MIDITrail can play MIDI files stored in a folder in sequence.
Clicking the "Open Folder" button on the operation panel will display a folder selection dialog, where you can select the folder containing the Standard MIDI files (*.mid).
You can also open a folder by dragging and dropping it into the MIDITrail window.

(3) Command line interface

If you want to start MIDITrail by command line, you can use following arguments.

MIDITrail.exe [-p] [-q] ["path\to\file"]

argument	detail
-p	Play MIDI file after startup of MIDITrail. If you did not specify "path\to\file", this option will be ignored.
-q	End MIDITrail after end of playback. If option "-p" was not specified, this option will be ignored.
path\to\file	MIDI file path. When you specify a path including a space character, please surround with a double quotation mark.

6. Playback MIDI files

(1) Playback MIDI file

You can use the operation panel to start, pause, stop, and skip MIDI file playback, as well as change the playback speed.
When the "Repeat" button on the operation panel is selected, MIDITrail repeats the playback of the MIDI file.

You can also control playback using menus, a keyboard, or a game controller instead of the operation panel.

(2) Folder playback

Opening the folder allows you to use the folder playback function.
Clicking the "Previous File" and "Next File" buttons on the operation panel allows you to open the files in the folder sequentially.
When the "Folder Playback" button is selected, MIDITrail automatically opens and begins playing the next file after the current MIDI file finishes playing.
When the "Repeat" button is selected, MIDITrail will start playing the first MIDI file after the last one finishes, thereby repeating the folder playback.

(3) Playback Counter

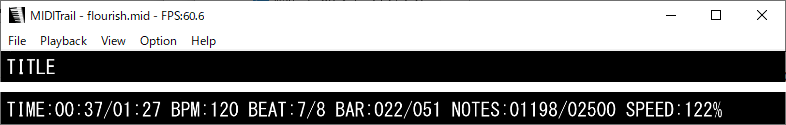

The contents of the playback counter displayed during MIDI file playback are as follows.

Counter	Details
TIME	Elapsed time.
BPM	Tempo (Beats Per Minute).
BEAT	Time signature.
BAR	Number of bars.
NOTES	Number of notes.
SPEED	Playback speed.

7. View Mode

(1) Selecting the View Mode

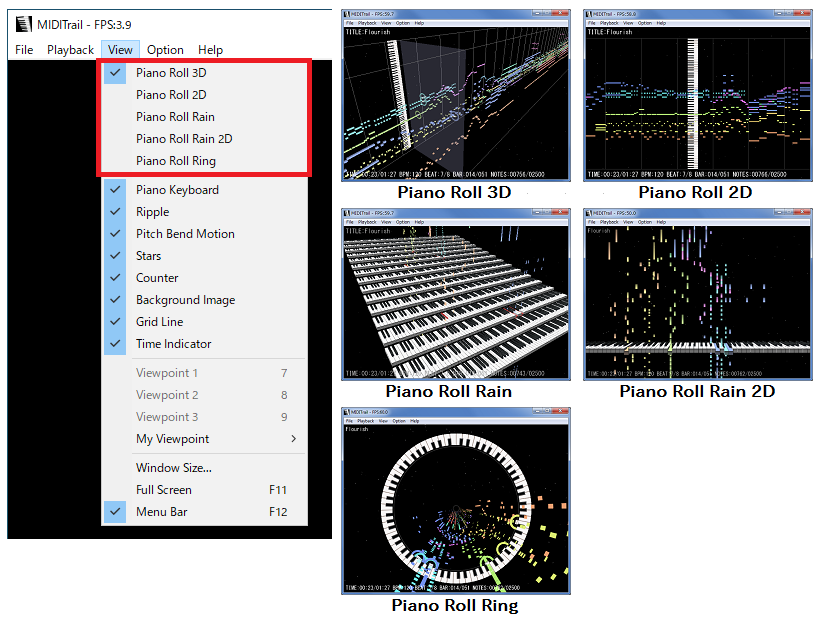

Clicking the "View Mode" button on the operation panel will displays the view mode selection dialog, where you can select the view mode.
You can also select the view mode from the "View" menu. You can not change the view mode while playing or pausing.

(2) Display/Effect switch

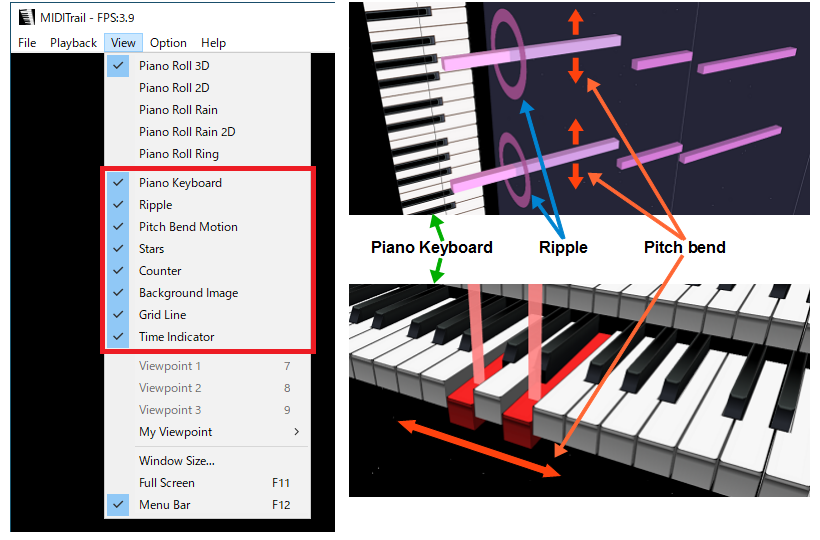

You can switch the display/effect at the "View" menu.

The piano roll bar will move up/down or right/left with change of pitch bend.
Some MIDI animation works are using pitch bend to shift the piano roll bars without change keys.
If the MIDI animation is not displayed correctly, please disable the pitch bend effect to fix the piano roll bars.

(3) Full screen display

When you select "Full Screen" from the "Window" menu, you can switch between window mode and full screen mode.

8. Moving the viewpoint

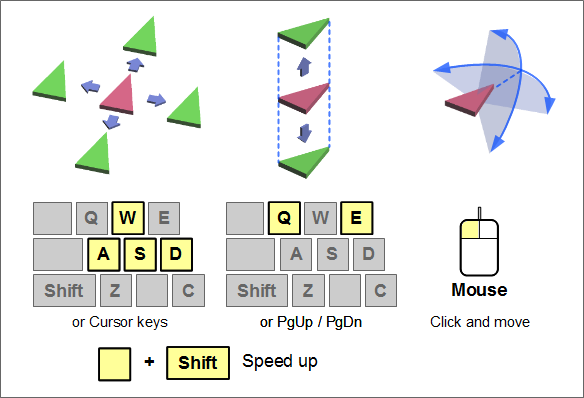

(1) Moving the viewpoint using the keyboard and mouse

You can move freely in 3D space, and look at MIDI datasets from all directions by operation of keyboard and mouse, like FPS (First Person Shooter) game.
Although there is sense of incongruity in the beginning, it will be very comfortable as experience is gained.

When you click the window, it will become the view control mode by the mouse, and mouse cursor will disappear.
The eye direction synchronizes movement of your mouse.
If you click once again, view control mode will be canceled.

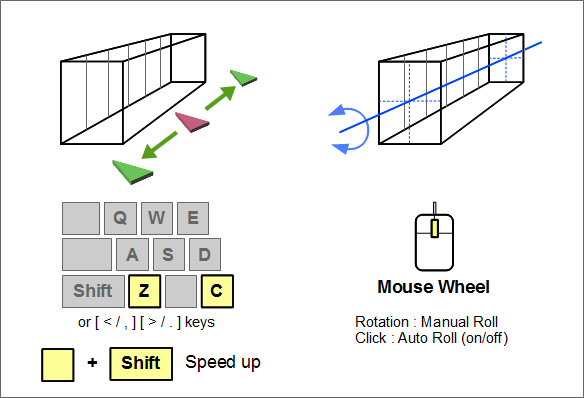

And you can rotate piano roll using mouse wheel.

(2) Moving the viewpoint using a game controller

You can operate by XInput game controller.

Button / Stick	Action
START button	Play / Pause / Resume
A button	Play / Pause / Resume
B button	Stop
X button	Viewpoint: down
Y button	Viewpoint: up
LB/RB shoulder button	Change viewpoint
LT/RT trigger button	Skip back/forward
Directional pad	Viewpoint movement: front and back, right and left
Left stick	Viewpoint movement: front and back, right and left
Right stick	Eye direction

NOTE: MIDITrail does not support DirectInput game controller.

(3) Switching and Saving Viewpoints

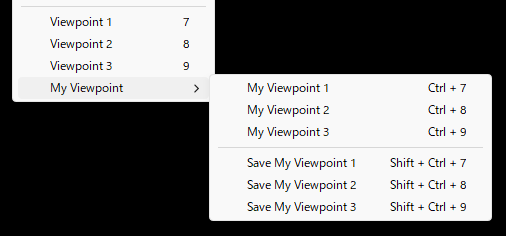

When you click "Viewpoint 1 / 2 / 3" button on the operation panel, you can switch to a standard viewpoint.
When you click "My Viewpoint 1 / 2 / 3" button, you can switch to a viewpoint saved in advance.

If you want to save the current viewpoint, select "Save My Viewpoint 1 / 2 / 3" from the "View" menu.
The viewpoint is saved for each view mode.

You can also use the keyboard to switch and save viewpoints.

9. MIDI IN monitor

You can view data sets received from MIDI IN device in realtime.
You need to select the device to be monitored in the MIDI IN settings beforehand.
When you select "Start Monitoring" from the "Playback" menu, MIDI IN monitoring will start.
NOTE: MIDITrail can not record data sets received from MIDI IN.

10. Setting

(1) Window size configuration

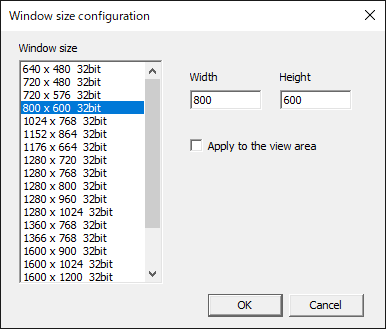

When you select "Window size..." from the "Window" menu, the window size configuration dialog will appear.
You can select your favorite window size.
You can not change window size while playing or pausing.

[Width] [Height]
You can specify any window size.

[Apply to the view area]
If you want to apply that size to the view area, check this option.

(2) MIDI OUT configuration

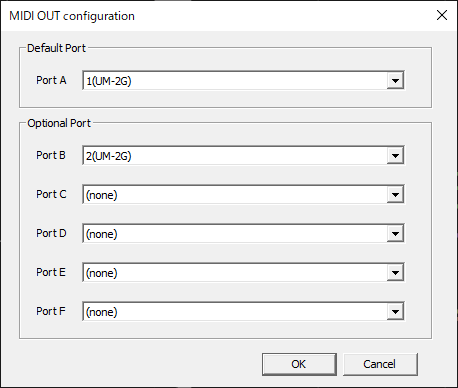

When you select "MIDI OUT..." from the "Option" menu, the MIDI OUT configuration dialog will appear.

[Port A]
At least, you must select the MIDI OUT device of "Port A". Ordinary MIDI datasets is sent to "Port A".

[Port B,C,D,E,F]
If you want to play the MIDI datasets which uses multiple ports,you must select the MIDI OUT device of port B, C, and so on.
To play the MIDI datasets which uses multiple ports, it is necessary to prepare MIDI interface and MIDI module which supports multiple ports.

(2) MIDI IN configuration

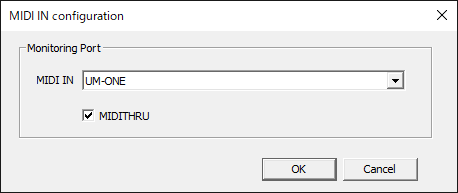

Select "MIDI IN..." from the "Option" menu, then "MIDI IN configuration" dialog will appear.

[MIDI IN]
Select the MIDI IN device to monitor.

[MIDITHRU]
If you check the MIDITHRU, MIDITrail will send data sets received from MIDI IN to MIDI OUT.

(3) Internal Wavetable Synthesizer configuration

Select "Synthesizer..." from the "Option" menu, the Internal Wavetable Synthesizer configuration dialog will appear.
You can not change Synthesizer configuration while playing or pausing.

[Wavetable File]
The default value is the wavetable file (GeneralUser-GS.sf2) included with the app.
You can select your wavetable file.
The extension of the wavetable file must be ".sf2".
MIDITrail assigns channel No.10 for percussion.

[Max Voices]
Select the maximum number of voices for waveform rendering. The default value is 512.
Selecting a smaller value can reduce the load on the waveform rendering process, but it may cause sound interruptions when playing MIDI data with a large number of notes.

[Sustain (CC#64)]
This setting allows you to choose whether or not to reflect the sustain (control change #64) contained in the MIDI data in the waveform rendering process. The default value is enabled.

[Acknowledgements]
This displays copyright notices of the library and sound bank.

(4) Graphic configuration

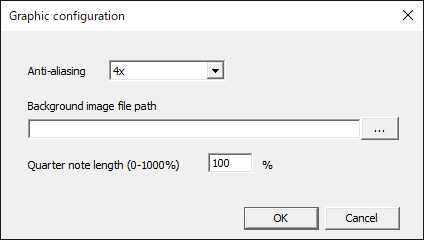

Select "Graphic..." from the "Option" menu, the graphic configuration dialog will appear.
You can not change graphic configuration while playing or pausing.

[Anti-aliasing]
If anti-aliasing is enabled, a notch (jaggy) will decrease and a more beautiful picture will be displayed.
However, since processing of anti-aliasing is heavy, performance may be poor when you select a upper level.
If your Mac does not support anti-aliasing, it is displayed as "Not supported".

[Background image file path]
If you want to display the background image, specify the file path of the image.
The extension of the image file must be ".jpg" or ".png".

[Quarter note length]
You can change a quarter note length of piano roll. You can specify a value from 0% to 1000%. The default value is 100%.

(5) Color configuration

You can customize the colors displayed on the screen.

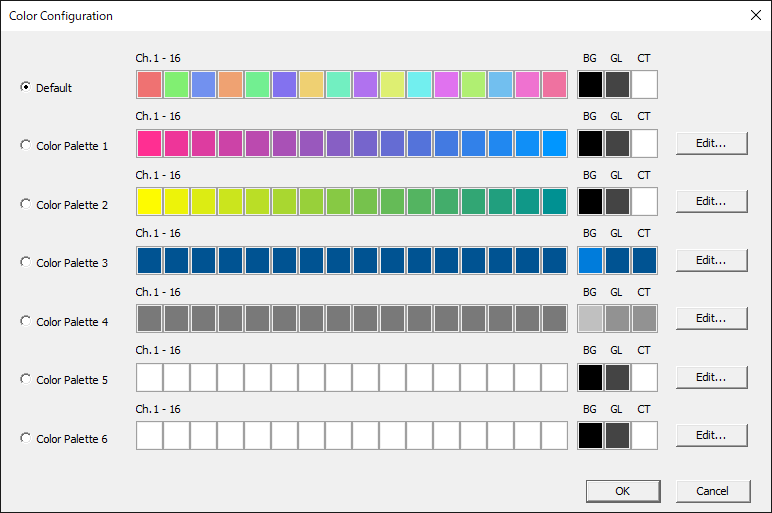

When you select "Color..." from the "Option" menu, the color configuration dialog will appear.
You can select the color palette and change it to your favorite color scheme.
You can not change the color while playing or pausing.

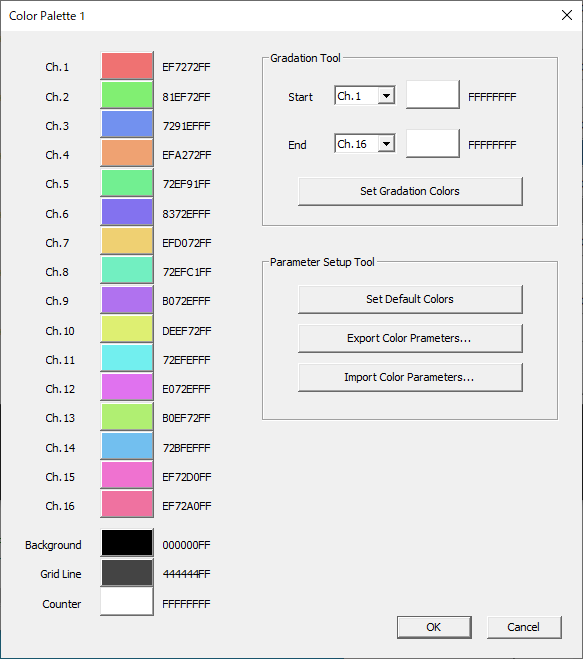

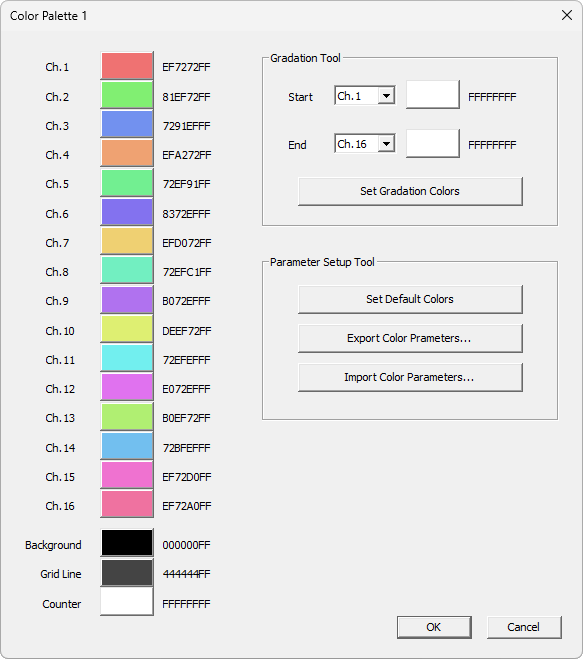

When you click "Edit..." button, the color palette configuration dialog will appear.
You can customize the color palette.
You can not edit the default color palette.

Gradation Tool
[Set Gradation Colors] You can assign gradation colors for channels that you selected.

Parameter Setup Tool
[Set Default Colors] Sets the default color for all items.
[Export Color Parameters...] You can edit the exported parameters with a text editor.
[Import Color Parameters...] You can import the parameters that you edited with a text editor. It is possible to enter part of the parameters.

11. Keyboard operations

(1) Keyboard operations

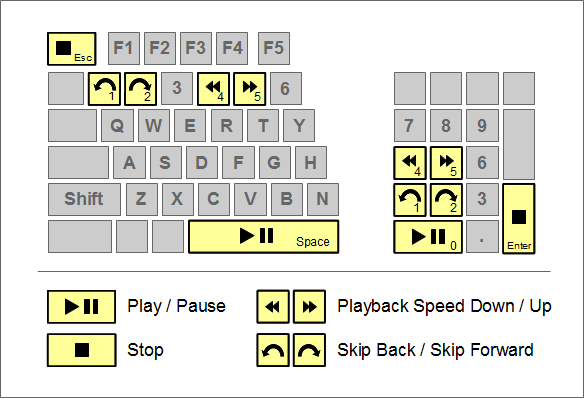

You can perform operations quickly using the keyboard. The keyboard operations for playing MIDI files are shown in the following figure.

(2) List of keyboard operations

Kind	Key	Action
File	CTRL + B CTRL + P	Open previous file.
	CTRL + N	Open next file.
Playback	SPACE	Play / Pause
	ESC	Stop
	12	Skip Backward / Skip Forward
	45	Playback Speed Down / Up
	F2	Double speed playback
Moving Viewpoint (left hand)	WS	It moves forward and backward.
	AD	It moves left and right.
	QE	It goes up and down.
	ZC	It moves along the direction of MIDI datasets. (In PinoRollRain, it moves along the piano keyboard.)
	SHIFT + [WS] SHIFT + [AD] SHIFT + [QE] SHIFT + [ZC]	Move quickly.
	CTRL + [WS] CTRL + [AD]	Control the direction of the gaze.
Moving Viewpoint (right hand)	↑↓	It moves forward and backward.
	←→	It moves left and right.
	PgUpPgDn	It goes up and down.
	,.	It moves along the direction of MIDI datasets. (In PinoRollRain, it moves along the piano keyboard.)
	SHIFT + [↑↓] SHIFT + [←→] SHIFT + [PgUpPgDn] SHIFT + [,.]	Move quickly.
	CTRL + [↑↓] CTRL + [←→]	Control the direction of the gaze.
Switching viewpoints	7	Move to standard viewpoint 3
	8	Move to standard viewpoint 2
	9	Move to standard viewpoint 3
	CTRL + 7	Move to my viewpoint 1
	CTRL + 8	Move to my viewpoint 2
	CTRL + 9	Move to my viewpoint 3
	SHIFT + CTRL + 7	Save my viewpoint 1
	SHIFT + CTRL + 8	Save my viewpoint 2
	SHIFT + CTRL + 9	Save my viewpoint 3
Screen	F11	Switching full screen

12. Restriction

(1) Synchronization of MIDI sound and display

If you use the MIDI module which delays sound (such as software sound modules), the MIDI sound and display may not synchronize.

(2) Performance of graphics

MIDITrail renders all notes of the MIDI file in real time.
Therefore if MIDI file has a large number of notes, the load of rendering becomes high.
In order to enjoy MIDI file which contains tens of thousands of notes comfortably, you have to use Mac which has high performance graphics.

(3) Multiple ports

In specification of SMF (Standard MIDI File), a method to select port is not defined.
However there is the unofficial method (*1) to select port. MIDITrail supports that method, but may be unable to play the MIDI file. It depends on the MIDI file.
(*1) Meta event (FF 21 01 pp) is the command to select port.

(4) Time format of standard MIDI file

MIDITrail can't open the MIDI file whose delta time represents actual time.

13. FAQ

(1) Q. Can I create playlists?

MIDITrail does not have a playlists function now, but you can use folder play function.
For details, please refer to "(2) Folder Playback" in "6. MIDI File Playback".

(2) Q. I got "d3dx9_**.dll was not found" error. I can't start MIDITrail.

The error occurs when the version of DirectX in your PC is old. Please install the latest version of "DirectX End-User Runtime".

Microsoft: DirectX End-User Runtimes (June 2010)
https://www.microsoft.com/en-us/download/details.aspx?id=8109

(3) Q. I got "DirectX API error. / FUNC: DXRenderer::Initialize / INFO: 8876086A" error.

If your PC does not support Direct3D, this error occurs.
Please execute "DirectX Diagnostic Tool"(dxdiag.exe), and select "Display" tab. Is the "Direct3D Acceleration" enabled?
If you can't change "Direct3D Acceleration" to "Enabled", your PC does not support Direct3D. Please use the PC which supports DirectX 9.0c graphics.

(4) Q. The animation is not smooth.

Please try to change window size to small, and turn off anti-aliasing. Then the load of rendering becomes low.
Check FPS value in window title. If the FPS value is under 60, the performance of graphics is insufficient.
When MIDI file has a large number of notes, the load of rendering becomes high.
To confirm the performance of your Mac, please try to open MIDI file which contains few notes. If the animation does not improve, please use Mac which has high performance graphics.

(5) Q. When I display the menu, the animation stops.

Sorry, it is a specification.

14. How to customize

You can customize MIDITrail as your like, by editing the files which is in "conf" folder.

File	contents
conf/Player.ini	Player configuration
conf/PianoRoll3D.ini	View mode configuration: Piano Roll 3D
conf/PianoRoll2D.ini	View mode configuration: Piano Roll 2D
conf/PianoRollRain.ini	View mode configuration: Piano Roll Rain
conf/PianoRollRain2D.ini	View mode configuration: Piano Roll Rain 2D
conf/PianoRollRing.ini	View mode configuration: Piano Roll Ring
conf/PianoRoll3DLive.ini	View mode configuration: Piano Roll 3D (MIDI IN Monitor)
conf/PianoRoll2DLive.ini	View mode configuration: Piano Roll 2D (MIDI IN Monitor)
conf/PianoRollRainLive.ini	View mode configuration: Piano Roll Rain (MIDI IN Monitor)
conf/PianoRollRain2DLive.ini	View mode configuration: Piano Roll Rain 2D (MIDI IN Monitor)
conf/PianoRollRingLive.ini	View mode configuration: Piano Roll Ring (MIDI IN Monitor)

(1) Player Configuration

(a) Player Control

Edit [PlayerControl] section.

Name	Details
AllowMultipleInstance	Allow multiple instances of the MIDITrail (0:disallow / 1:allow)
AutoPlaybackAfterOpenFile	Playback automatically after opening file (0:disable / 1:enable)

(b) View Control

Edit [ViewControl] section.

Name	Details
ShowFileName	Show the file name insted of the title (0:disable / 1:enable)

(c) Skip Control

Edit [SkipControl] section.

Name	Details
SkipBackTimeSpanInMsec	Skip back time span (msec)
SkipForwardTimeSpanInMsec	Skip forward time span (msec)
MovingTimeSpanInMsec	Skip animation time span (msec)

(d) Playback Speed Control

Edit [PlaybackSpeedControl] section.

Name	Details
SpeedStepInPercent	Playback speed step (%)
MaxSpeedInPercent	Playback speed max ratio (%)

(e) Playback Control

Edit [Playback] section.

Name	Details
DelayBetweenSongsInMsec	Delay between songs (msec)（0 - 10000）

(2) View Mode Configuration

(a) Moving speed of viewpoint

Edit [FirstPersonCam] section.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
VelocityFB	yes	yes	yes	Velocity of forward and backward. (m/s)
VelocityLR	yes	yes	yes	Velocity of left and right. (m/s)
VelocityUD	yes	yes	yes	Velocity of up and down. (m/s)
VelocityPT	yes	yes	yes	Angular velocity of look. (degree/s)
AcceleRate	yes	yes	yes	The rate of acceleration when push SHIFT key. (n times)
VelocityAutoRoll	yes	yes	yes	Angular velocity of auto rotation of piano roll (degree/s)
VelocityManualRoll	yes	yes	yes	Angular velocity of manual rotation of piano roll (degree/s)

(b) Display of piano roll

Edit [Scale] section.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
QuarterNoteLength	yes	yes	yes	Length of quarter note (m)
NoteBoxHeight	yes	no	yes	Height of note box (m)
NoteBoxWidth	yes	no	yes	Width of note box (m)
NoteStep	yes	no	no	Interval length of notes in a channel (m)
ChStep	yes	no	yes	Interval length of channels (m)
RippleHeight	yes	no	yes	Height of ripple (m)
RippleWidth	yes	no	yes	Width of ripple (m)
PictBoardRelativePos	yes	no	yes	The relative position which crosses perpendicularly the board and the playback section. 0.0 - The left edge of board crosses playback section 0.5 - The center of board crosses playback section 1.0 - The right edge of board crosses playback section
LiveNoteLengthPerSecond	yes	yes	yes	Note length for 1 second in monitor (m)
LiveMonitorDisplayDuration	yes	yes	yes	Display duration in monitor (msec)
RingRadius	no	no	yes	Radius of ring (m)

If you set small value to QuarterNoteLength, you can enjoy MIDI datasets like miniature garden.

(c) Color

Edit [Color] section. "A" of "RGBA" means alpha value.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
NoteColorType	yes	yes	yes	Note color type CHANNEL: Assign the channel color to the piano roll bar. (Ch-XX-NoteRGBA) SCALE: Assign the scale color to the piano roll bar. (Scale-XX-NoteRGBA)
Ch-01-NoteRGBA Ch-02-NoteRGBA    : Ch-16-NoteRGBA	yes	yes	yes	Color of the piano roll bar at each channel.(RGBA)
Scale-01-NoteRGBA Scale-02-NoteRGBA    : Scale-12-NoteRGBA	yes	yes	yes	Color of the piano roll bar at each sacle.(RGBA) 01=C,02=C#,03=D,04=D#,05=E,06=F,07=F#,08=G,F09=G#,10=A,11=A#,12=B
GridLineRGBA	yes	no	yes	Color of the grid line and bar line. (RGBA) If A of RGBA is 00 then the grid line will disappear.
PlaybackSectionRGBA	yes	no	no	Color of the playback section. (RGBA)
CaptionRGBA	yes	yes	yes	Color of the caption/counter string.(RGBA)
BackGroundRGB	yes	yes	yes	Back ground color(RGB)

(d) Active note effect

Edit [ActiveNote] section.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
Duration	yes	no	yes	Duration of active note flash.(msec)
WhiteRate	yes	no	yes	White rate at "NOTE ON". 0.0 Same color as piano roll bar. It means no flash. 0.5 Neutral color of piano roll bar and white. 1.0 White.
EmissiveRGBA	yes	no	no	Emissive color of active note. (RGBA) This value will be ignored on PianoRoll2D.
SizeRatio	yes	no	yes	Size magnification ratio of active note. This value will be ignored on MIDI IN Monitor.

(e) Ripple

Edit [Ripple] section.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
Duration	yes	no	yes	Duration of a ripple.(msec)

(f) Stars

Edit [Stars] section.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
NumberOfStars	yes	yes	yes	The number of stars to draw.

(g) Bitmap

Edit [Bitmap] section.
Place your bitmap file to "data" folder which exists under the MIDITrail folder. And write the bitmap file name to INI file.
If the height or width of bitmap is too big, your PC may be unable to draw the bitmap.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
Board	yes	no	yes	Bitmap file name of the picture board.(ex. "data\Board.bmp") Instead of piano keyboard, you can display your favorite wallpaper. The aspect ratio of bitmap is arbitrary. To adjust the relative position which crosses perpendicularly the board and the playback section, please edit "[Scale] / PictBoardRelativePos".
Ripple	yes	no	yes	Bitmap file name of the ripple.(ex. "data\Ripple.bmp") You can change ripple which is displayed on "NOTE ON". The aspect ratio of bitmap is arbitrary. To adjust ripple display size, please edit "[Scale] / RippleHeight, RippleWidth".
Keyboard	no	yes	no	Bitmap file name of piano keyboard.(ex. "data\Keyboard.bmp") Texture image of Piano keyboard. You can not change the aspect ratio of this bitmap.

(h) Piano keyboard

Edit [PianoKeyboard] section.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
KeyDownDuration	no	yes	no	Duration of key down (msec)
KeyUpDuration	no	yes	no	Duration of key up (msec)
KeyboardStepY	no	yes	no	Keyboard step interval: Horizontal direction (m)
KeyboardStepZ	no	yes	no	Keyboard step interval: Vertical direction (m)
KeyboardMaxDispNum	no	yes	no	The number of the maximum keyboards (0-16)
WhiteKeyColor	no	yes	no	Color of white key. (RGBA)
BlackKeyColor	no	yes	no	Color of black key. (RGBA)
ActiveKeyColorType	no	yes	no	Active key color type STANDARD: Standard color (ActiveKeyColor) NOTE: Note color (Ch-XX-NoteRGBA or Scale-XX-NoteRGBA)
ActiveKeyColor	no	yes	no	Color of active key. (RGBA)
ActiveKeyColorDuration	no	yes	no	Duration of change from the color of note ON to the last neutral color. (msec)
ActiveKeyColorTailRate	no	yes	no	Definition of the last neutral color. Color ratio of the color of note ON (red) and the color of key (white/black) (0.0-1.0)
KeyDispRangeStart	no	yes	no	Key display range: start position (0-127) In typical 88-key piano, start position is 21(A0).
KeyDispRangeEnd	no	yes	no	Key display range: end position (0-127) In typical 88-key piano, end position is 108(C8).

(i) Standard viewpoint

Edit [Viewpoint-2],[Viewpoint-3] section. You can not edit viewpoint 1.

Name	PR-3D/2D	PR-Rain/2D	PR-Ring	Details
no	yes	yes	yes	X-coordinate
Y	yes	yes	yes	Y-coordinate
Z	yes	yes	yes	Z-coordinate
Phi	yes	yes	yes	Azimuth angle (degree)
Theta	yes	yes	yes	Zenith angle (degree)
ManualRollAngle	yes	yes	yes	Manual rotation angle (degree)
AutoRollVelocity	yes	yes	yes	Automatic rotation velocity (degree/second)

15. Appendix

(1) Structure of 3D piano roll visualization

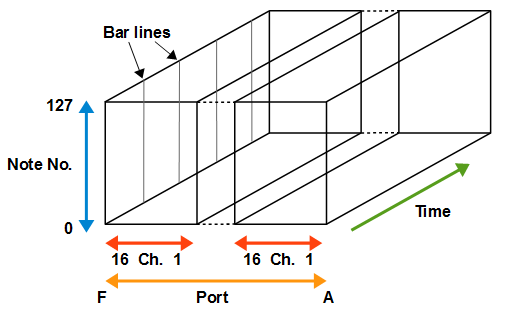

(a) The structure of "Piano roll 3D" visualization

When MIDITrail open the MIDI datasets uses multiple ports, unused port will be not displayed.
For example, if the MIDI datasets uses port A, C and E, MIDITrail displays port A, C and E side by side, and omits port B and D.

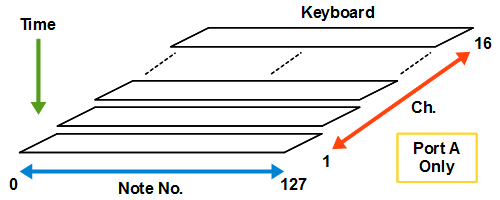

(b) The structure of "Piano Roll Rain" visualization

When MIDITrail open the MIDI datasets uses multiple ports, only piano keyboards of port A will be displayed.
However piano roll bars of all ports will be displayed.

16. Copyright and license

WADA Masashi holds the copyright of MIDITrail.
MIDITrail is released under the BSD license.

Copyright (c) 2010-2026, WADA Masashi <>
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions
are met:

* Redistributions of source code must retain the above copyright
  notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright
  notice, this list of conditions and the following disclaimer in the
  documentation and/or other materials provided with the distribution.
* Neither the name of the author nor the names of its contributors
  may be used to endorse or promote products derived from this
  software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

17. Acknowledgements

MIDITrail uses the following library and SoundFont bank.

TinySoundFont

Copyright (C) 2017-2023 Bernhard Schelling (Based on SFZero: Copyright (C) 2012 Steve Folta)
https://github.com/schellingb/TinySoundFont
License details

GeneralUser GS

Copyright (C) 1997-2025 S. Christian Collins
https://www.schristiancollins.com/
License details

18. History

osdn#<id> ... OSDN Ticket Archive
ghwin#<id> ... GitHub MIDITrail-Windows

yyyy/mm/dd	Version	Changelog
2010/03/08	Ver.0.0.0	Development start
2010/05/18	Ver.1.0.0 beta	Beta release
2010/06/02	Ver.1.0.0	First formal release
2010/06/05	Ver.1.0.1	osdn#22102 Fixed bug (execution fails by missing Visual C++ runtime library) osdn#22106 Fixed bug (size of about dialog is big on Windows English version)
2010/06/20	Ver.1.0.2	osdn#22218 Added English manual osdn#22108 Fixed bug (crash when opening the MIDI file exported from VOCALOID) osdn#22217 Fixed bug (overlapped ripples flicker)
2010/07/11	Ver.1.0.3	osdn#22319 Added color effect to active piano roll bar osdn#22412 Added pitch bend effect to piano roll bar osdn#22425 Added view mode of piano roll 2D osdn#22442 Added switch interface of display and effect osdn#22413 Fixed bug (rendering performance has declined by specular effect) osdn#22414 Fixed bug (total count of notes is incorrect) osdn#22424 Fixed bug (duration of a ripple is not constant)
2010/07/25	Ver.1.0.4	osdn#22320 Added application icon osdn#22522 Added support for Recomposer data file osdn#22523 Added command line interface osdn#22582 Added double speed playback mode osdn#22585 Added function of piano roll rotation by a mouse wheel osdn#22566 Fixed bug (Playback time was slightly short) osdn#22506 Fixed bug (Note may continue sounding after the end of playback)
2010/08/06	Ver.1.0.5	osdn#22633 Fixed bug (Piano roll rotation status is not saved by "Save viewpoint") osdn#22652 Fixed bug (Parse error when opening 55MCMDL1.MID "WATANABE Michiaki MEDLEY") osdn#22709 Fixed bug (MIDITrail sends redundant "F7" to MIDI-OUT with multi-packet system exclusive message) osdn#22710 Fixed bug (Auto rotation speed of piano roll is not constant)
2010/08/29	Ver.1.1.0 beta	Beta release (Added "Piano Roll Rain")
2010/09/19	Ver.1.1.0	osdn#23174 Added view mode "Piano Roll Rain" osdn#23175 Fixed bug (File open dialog is not modal)
2010/10/17	Ver.1.1.1	osdn#23439 Added Anti-aliasing support osdn#23347 Fixed bug (Key down timing and a piano roll don't synchronize in PianoRollRain) osdn#23348 Fixed bug (Spelling error in file open dialog) osdn#23422 Fixed bug (Position of black is not correct in PianoRollRain)
2010/12/26	Ver.1.1.2	This version was released with MIDITrail for Mac OS X osdn#23970 Added eye direction control by key operation osdn#23971 Updated texture images osdn#23972 Updated application icon osdn#23497 Fixed bug ("Piano Roll Rain" item in "View" menu is always enable) osdn#23968 Fixed bug (Time signature was always 4/4 after loading file) osdn#23969 Fixed bug (Space charactor in the title string has been ignored)
2012/01/15	Ver.1.1.3	osdn#27006 Merged features of MIDITrail Ver.1.1.3 for Mac OS X osdn#25454 Added grid line display control osdn#26987 Added playback speed control osdn#26988 Added skip control osdn#26989 Added stars and counter display control osdn#27005 Added figure of player operations guide to "How to view dialog" osdn#27091 Added check of DirectX feature support (Index Buffer) osdn#26990 Fixed bug (Typographical errors on the license) osdn#27139 Fixed bug (The color of note boxes are whitish in Piano Roll 3D) osdn#27140 Fixed bug (The color of stars are dark in Piano Roll Rain)
2012/03/04	Ver.1.2.0	osdn#27711 Merged features of MIDITrail Ver.1.2.0 for Mac OS X osdn#27458 Added MIDI IN monitoring osdn#27459 Added MIDI OUT auto configuration osdn#27712 Added shortcut key of File Open osdn#27725 Fixed bug (Error occurs when the MIDI data contains the track with 6 or more port numbers)
2013/12/04	Ver.1.2.1	osdn#30545 Added key display range control osdn#30546 Added back ground color control osdn#30547 Added scale color assignment to the piano roll bar osdn#30553 Added ability to render the user-specified 3D model osdn#32360 Added menu item "Auto save viewpoint" osdn#32361 Added ability to save viewpoint in MIDI IN monitoring osdn#32362 Added ability to playback automatically after opening file osdn#32363 Added ability to open the file while playing osdn#32364 Added ability to inhibit multiple instances of MIDITrail osdn#32366 Added ability to display the file name osdn#32367 Added view mode "Piano Roll Rain 2D" osdn#32427 Added note color assignment to active key osdn#32365 Changed title caption ("TITLE:" string was removed) osdn#30552 Improved event message queue mechanism osdn#30548 Fixed bug (At the start of playback, MIDI data transmission is blocked) osdn#32359 Fixed bug (MIDITrail does not send some CC events at skip processing)
2014/02/23	Ver.1.2.1a	osdn#33252 Added support for Windows 64bit
2014/04/20	Ver.1.2.1b	osdn#33674 Fixed bug (When NSX-39 was selected as MIDI OUT device, error occurs at the start of playback) osdn#33695 Fixed bug (Program error occurs in MTFont2Bmp::_writeGlyphToBmpBuf)
2016/12/05	Ver.1.2.2	osdn#35775 Changed URL and mail address in user's manual osdn#36844 Added supports window size customization osdn#36845 Added supports background image customization osdn#36846 Changed version information string
2017/10/09	Ver.1.2.3	osdn#37561 Added increase of the size of active note osdn#37562 Changed brightness the ripple color
2019/02/10	Ver.1.2.4	osdn#38953 Added viewpoint selection menu osdn#38954 Fixed bug (Piano roll bar flickers in Piano Roll 2D mode) osdn#38955 Fixed bug (Time indicator becomes opaque in Piano Roll 3D mode)
2019/05/12	Ver.1.2.5	osdn#39227 Added quarter note length configuration osdn#39226 Changed development environment to Visual Studio 2017 osdn#39228 Changed appendix of user's manual osdn#39229 Fixed bug (Code analysis found some mistakes)
2019/06/02	Ver.1.2.6	osdn#39274 Added full screen mode osdn#39275 Added support for game controller
2019/10/14	Ver.1.3.0	osdn#39675 Added view mode "Piano Roll Ring"
2019/11/09	Ver.1.3.1	osdn#39733 Changed keyboard display direction on Piano Roll Ring osdn#39734 Changed processing to keep viewpoint when window size changed osdn#39735 Fixed bug (Assertion occurs in _controlfp_s when x64 debug configuration) osdn#39736 Fixed bug (Exception occurs in "How to view" dialog when x64 debug configuration)
2021/05/16	Ver.1.3.3	osdn#42233 Added Folder Playback feature osdn#42234 Added support for Standard MIDI File with illegal chunk size osdn#42235 Added support for RIFF-based MIDI File osdn#42236 Added sending "All Sound Off" messeage when pause/stop/skip osdn#42237 Fixed bug (The color of the ripples becomes dark in Piano Roll 3D)
2021/09/13	Ver.1.3.4	osdn#42859 Added setting of delay between songs
2022/07/14	Ver.1.3.6	osdn#45088 Added menu bar display switch osdn#45089 Added feature of saving my viewpoint osdn#45090 Added display switch of grid line and time indicator osdn#45091 Added feature of saving display switch status osdn#45092 Added 2nd light for Piano Roll 3D osdn#45093 Added MIDI system message parsing
2022/10/20	Ver.1.4.0	osdn#45896 Added feature of color configuration osdn#45897 Added bar ring for Piano Roll Ring osdn#45898 Added Unicode support for reading MIDI files osdn#45899 Changed key color of Piano Roll Rain osdn#45900 fixed bug. (Counter displays monitering stop when toggle full screen) osdn#45901 fixed bug. (Window size is smaller than user setting) osdn#45931 fixed bug. (MIDITrail is not reading tempo data correctly)
2025/10/30	Ver.1.4.1	ghwin#7 fixed bug. (Piano roll is black on AMD Radeon Graphics) ghwin#8 Added function to send note off when paused or stopped and note on when resumed ghwin#9 Changed documents due to the migration of the project website
2026/08/31	Ver.1.5.0	ghwin#10 Added TinySoundFont as the internal wavetable synthesizer ghwin#11 Added GeneralUser GS as the default wavetable file ghwin#12 Added Operation Panel ghwin#13 Added message incicating that files can be dropped on the startup screen ghwin#14 Added function to save the selection state of repeat and folder playback ghwin#15 Added High-DPI support (primary monitor only)High-DPI support (primary monitor only) ghwin#16 Changed the initial display page of the manual ghwin#17 Changed the timing for saving color palette settings ghwin#18 Changed the manual chapter structure ghwin#19 Changed the dialog position to the center of the main window. ghwin#20 Changed the note saturation in Piano Roll Rain ghwin#21 Fixed bug (_SetWindowSize error occurs when launching an application on Windows 7)
